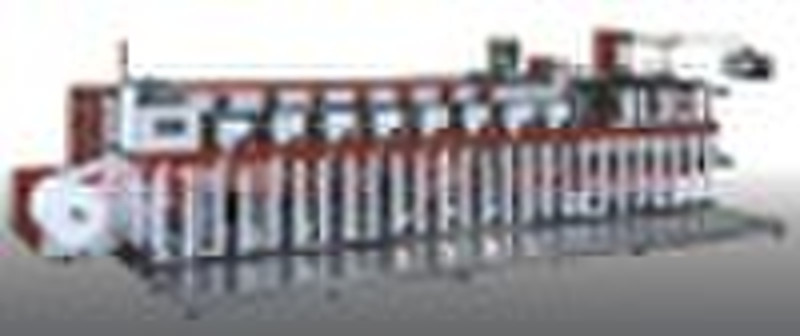

ZTF-330(ZEUS-1)Multi-function Modular Flexo Presse

DETAILED PRODUCT DESCRIPTION: Characteristics : 1. Servo tension control system: maintain constant tension to guarantee the stability of register. 2.Quick change system: Easier to change plate cylinder and anilox roll to save operating time. 3.High capacity drying system: Unique design of hot air drying system to improve efficiency of drying and increase printing speed. 4.Multi-function capability: Combine laminating, coating , foil stamping, silk screen, delam/relam and diecutting processes, etc. in one pass. Optionals : 1)All UV printing2)Laminating3)Turn bar4)Cold foil stamping5)Hot foil stamping6)Back score7)Shear slitter8)Corona treater9)Ink pump10)Shingle stacker11)Dust remover12)Enclosed doctor chamber13)Upper rewind14)Video inspection system15)Rotary silk screen16)Delam/Relam Technical specification : Max. Web width330mmMax. printing width320mmPrinting repeat229 502mmRotary cutting repeat254mm 502mmThickness of substrate0.1 0.3mmAvailable print colors12Designed mechanical speed160m/minMaximum unwind diameter1016mmMaximum rewind diameter(Single rewind)1016mm (Dua rewind)762mmMaximum waste rewind700mmCapacity of main motor11kw/8 Colors (below 8 colors)5kw/8 Colors (above 8 colors)Capacity of hot air dryer6kw,(unit)Main power380V/AC Three-phase (3 phase) 50HzCapacity of UV dryer160w/cmOverall dimension(L×W×H)8500×1222×2000Machine weight5000kg/8 Colors (8Colors)*Its overall dimension and manufacturing Process are subject to change without further notice.
